Main Window

HandPunch Attendance Manager consists of 2 main sections:

  1. Connection settings – this is where you would choose type of connection and settings to connect to your HandPunch.
  2. Attendance Log management – This is where you would see list of registrations downloaded from your HandPunch, you can modify registrations and save final copy to a CSV file.

HandPunch Attendance Manager

Connection Settings

You can connect to your HandPunch using TCP/IP connection or Serial Connection.

HandPunch Attendance Manager Connection Settings

  1. Connection Type radio buttons – select the type of connection you are using
  2. Connection Settings fields – enter connection settings
  3. Test button – use this button after you’ve entered connection settings to test if connection with your HandPunch can be established.

Connecting to HandPunch via TCP/IP

If your HandPunch device has network card and you can connect to it via IP or Host or host address

HandPunch Attendance Manager TCP/IP Connection Settings

  1. Host or IP Address – If your      HandPunch is on a Local Area Network, then you need to enter its IP address into “Host or IP Address field”.  If you are connecting to the HandPunch which is located in a remote location, then you need to know either a static IP of the location where the HandPunch is or host address.  You can read our How To topic “How to connect to HandPunch from a remote location“.
  2. Port – If your HandPunch is on a Local Area Network, then you should leave Port number to its default value 3001.  If your HandPunch is in the remote location, then you need to know the port number that was forwarded in the router to the HandPunch you are trying to connect to. You can read our How To topic “How to connect to HandPunch from a remote location“.
  3. Device Number – If your HandPunch has a built-in network card, then device number should be 0.  If you are using Serial to TCP/IP converter, then you need to  know the address assigned to your HandPunch.  You can read our How To topic “How to change HandPunch address“.

Connect to HandPunch via Serial

If you would like to connect to HandPunch using Serial Cable, then you need to specify COM Port, Baud Rate and Device Number.

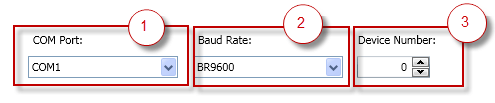

HandPunch Attendance Manager Serial Connection Settings

  1. COM Port – COM port on your computer where serial cable from HandPunch is connected
  2. Baud Rate – Baud rate set in the HandPunch.  Default Baud Rate on HandPunch is 9600.  Unless you know that is has been changed, you should leave it at 9600.
  3. Device Number – Address assigned to your HandPunch. You can read our How To topic “How to change HandPunch address”.

Attendance Log Management

In this window you can view all attendance logs downloaded from your HandPunch. You can add, modify and delete attendance logs and then export it to CSV file or upload it Midex Time Control Express.  In addition, you can import one of the previously saved file from the program.

When user downloads logs from the HandPunch, a new csv file is created and saved in the Program Data folder.  Any changes applied to the logs, does not affect this file.  This way, if user made any mistake, original file can be reloaded.

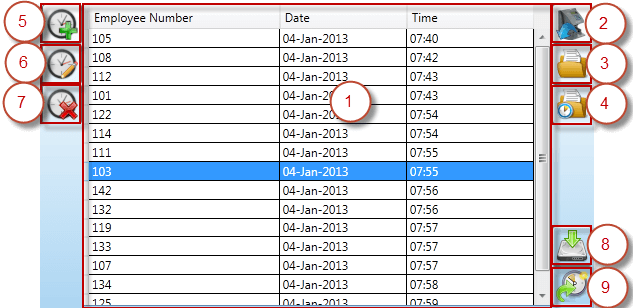

HandPunch Attendance Manager Attendance Log

  1. Attendance Log grid – grid where all attendance logs downloaded from HandPunch or loaded from file are shown.
  2. Load from Device button – when this button is pressed, all logs are downloaded from the HandPunch.  WARNING:  Once logs are downloaded, they are automatically removed from the device.
  3. Load From File button – Opens a dialog window for the user to select the file to be loaded into the Attendnac Log grid.
  4. Load Original button – Opens a dialog window pointing to the folder where all csv files with orignal attendance logs are storred.
  5. Add Registration button – Allows user to add a manual registration.
  6. Edit Registration button Allow suser to modify one of the existing registrations.
  7. Delete Registration button– Delete selected registrations in the grid.
  8. Save to File button– exports all logs shown in the grid to the CSV file.
  9. Upload to Midex Time Control Express buttonAllows user to upload all logs directly to Midex Time Control Express.  You must have created an account prior to the upload.  Follow this link to create your own Midex Time Control Express account absolutely free.
